Carbon Composite 2.5D Needled CFC High-Density High Strength Cc Fasteners

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.	T300
Bulk Density	1.83 g/cm³
Type	Graphite Mold
Carbon Content	High-Carbon
Grade	Industrial Grade
Forming Way	Molded Graphite
Crystal Morphology	Flake Graphite
Composition	100% Carbon
Transport Package	by Ply-Wood
Specification	Customized
Trademark	DC
HS Code	28030000
Production Capacity	100PCS Per Day

Product Description

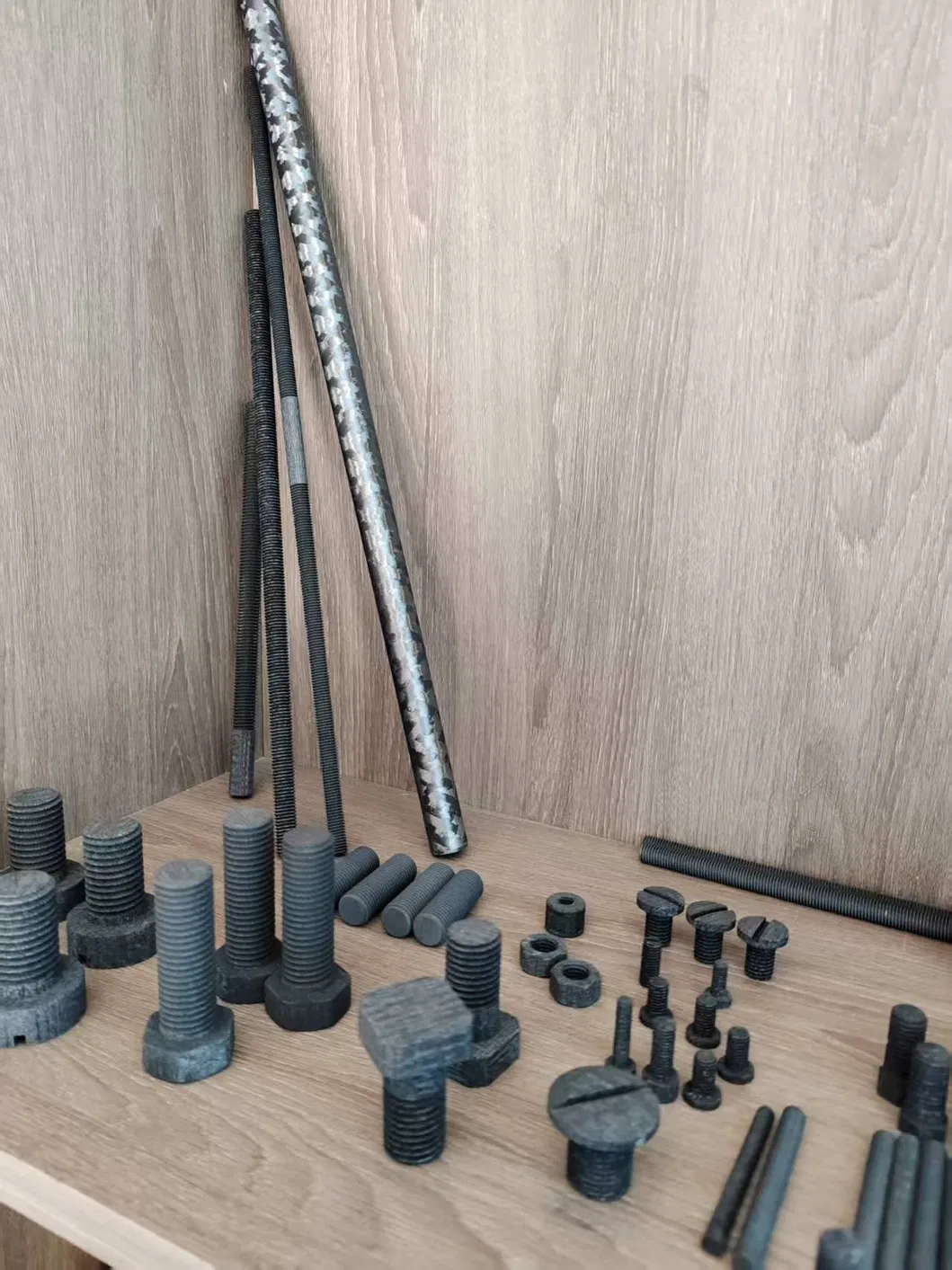

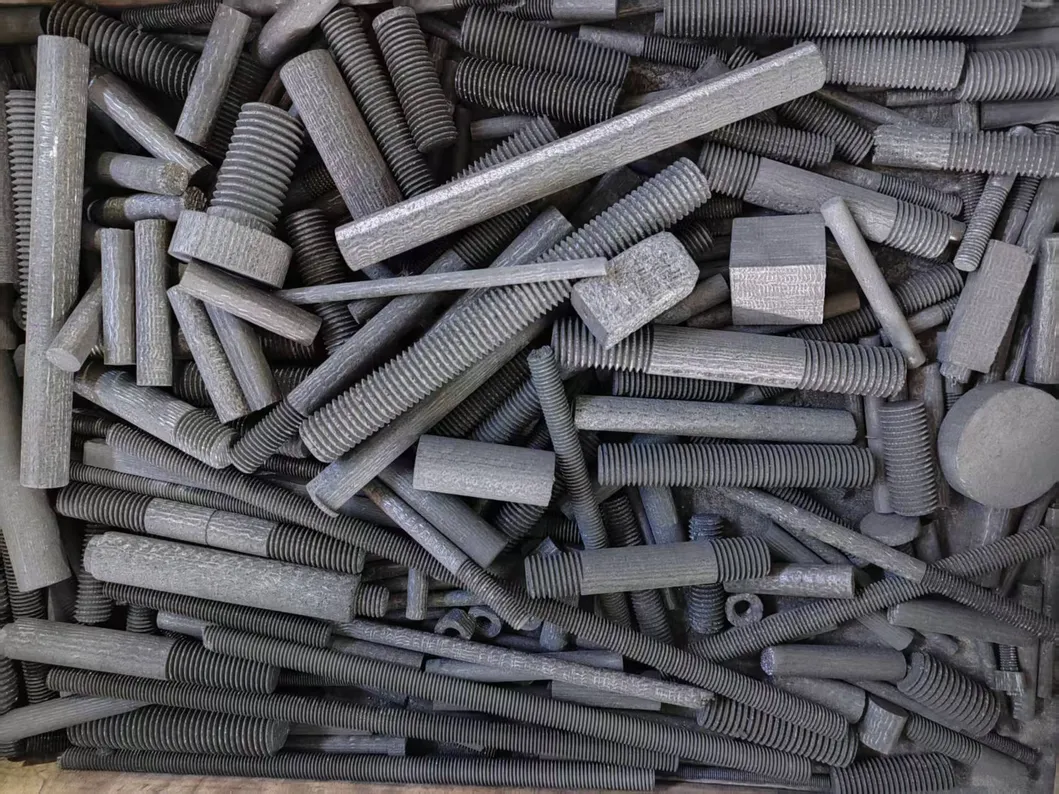

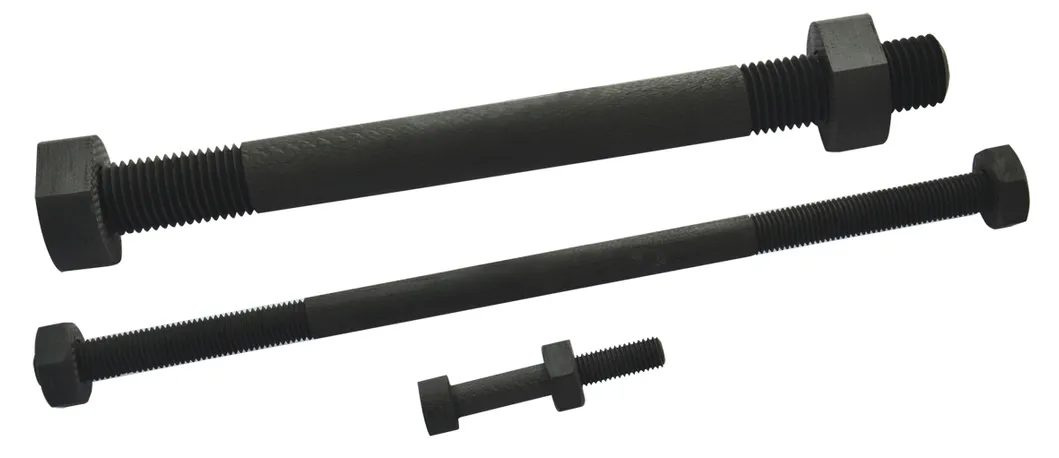

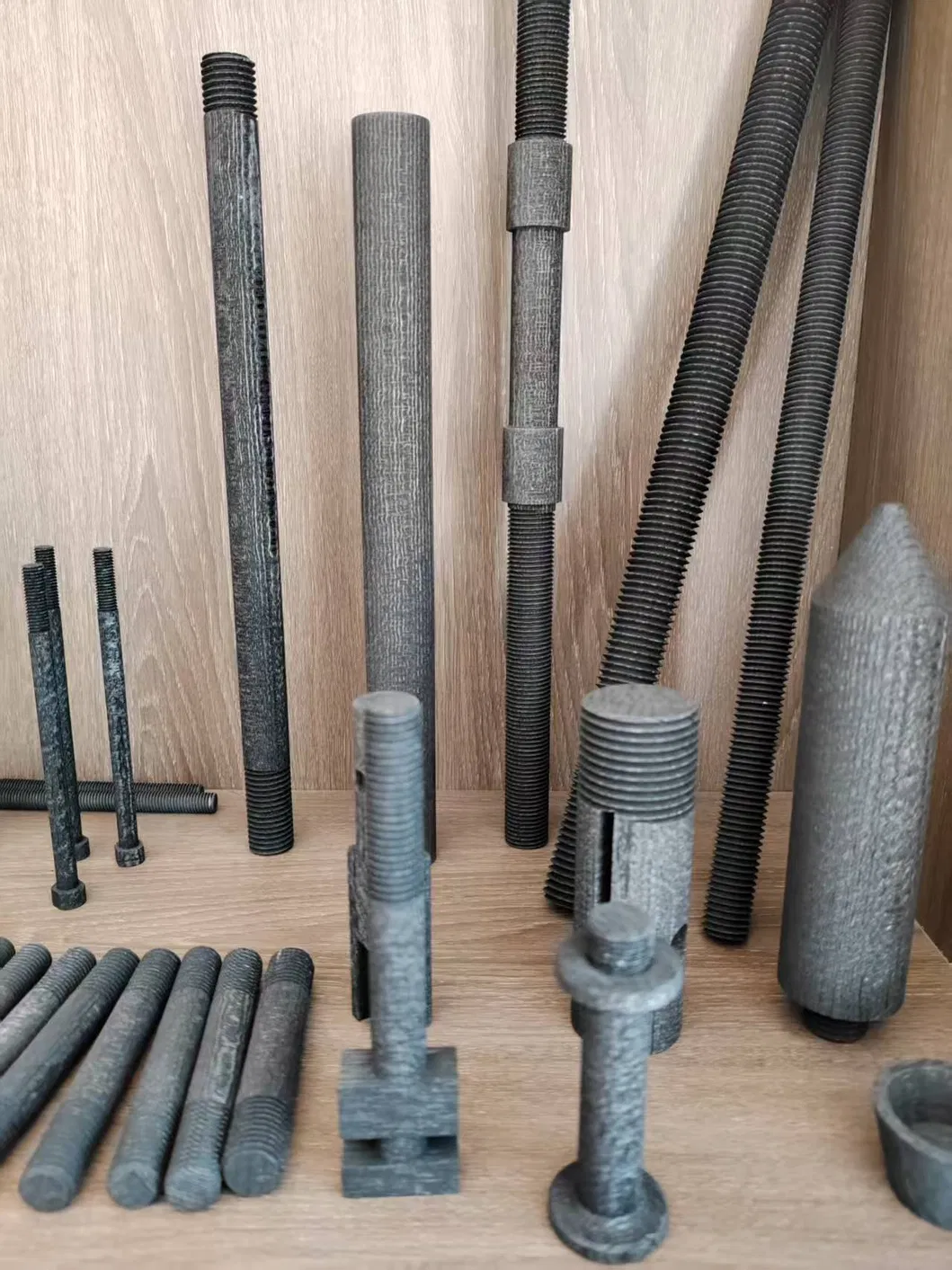

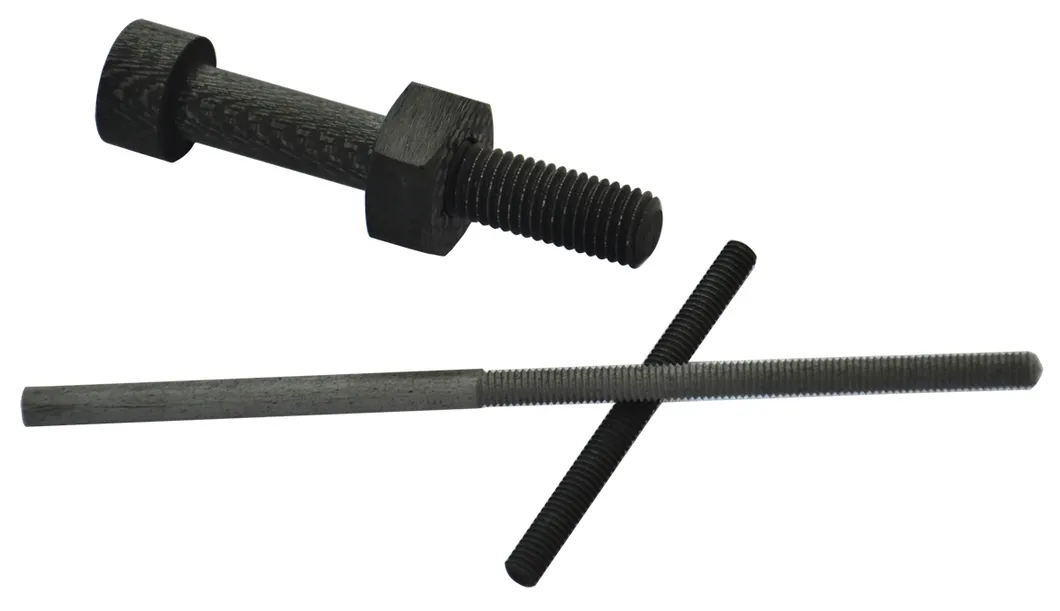

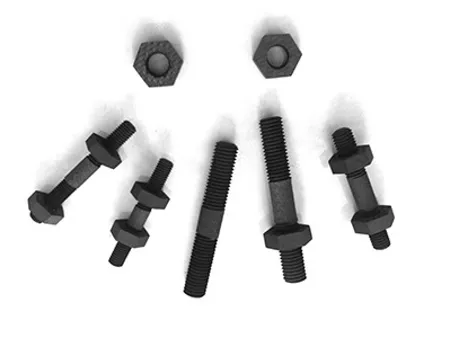

Carbon Composite 2.5D Needled CFC High-density High Strength CC Fasteners:

Property	Unit	Value Range
Bulk Density	g/cm³	1.40 ~ 1.60
Tensile Strength	MPa	106.7 ~ 120
Tensile Modulus	GPa	25 ~ 30
Flexural Strength	MPa	140 ~ 150
Compressive Strength	MPa	98 ~ 160
Shear Strength	MPa	50 ~ 60
Inter-Laminar Shear Strength	MPa	> 12
Coefficient of linear expansion (⊥)	10⁻⁶/K	7.3
Coefficient of linear expansion (∥)	10⁻⁶/K	< 1
Thermal Conductivity (⊥)	W/mk	5 ~ 8
Thermal Conductivity (∥)	W/mk	30 ~ 40
Heat Treatment Temperature	ºC	> 2200
Resistivity	μΩM	25 ~ 35
Ash Content (Normal)	ppm	≤ 200
Ash Content (Purified)	ppm	≤ 20

Typical Applications:

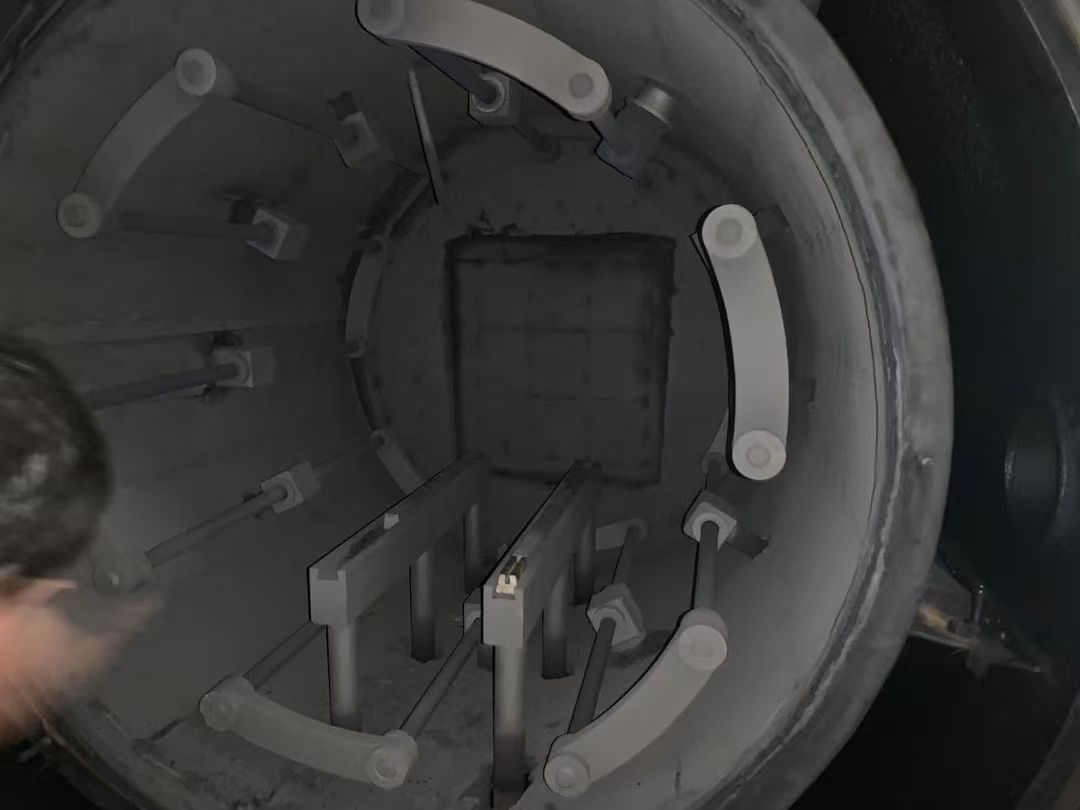

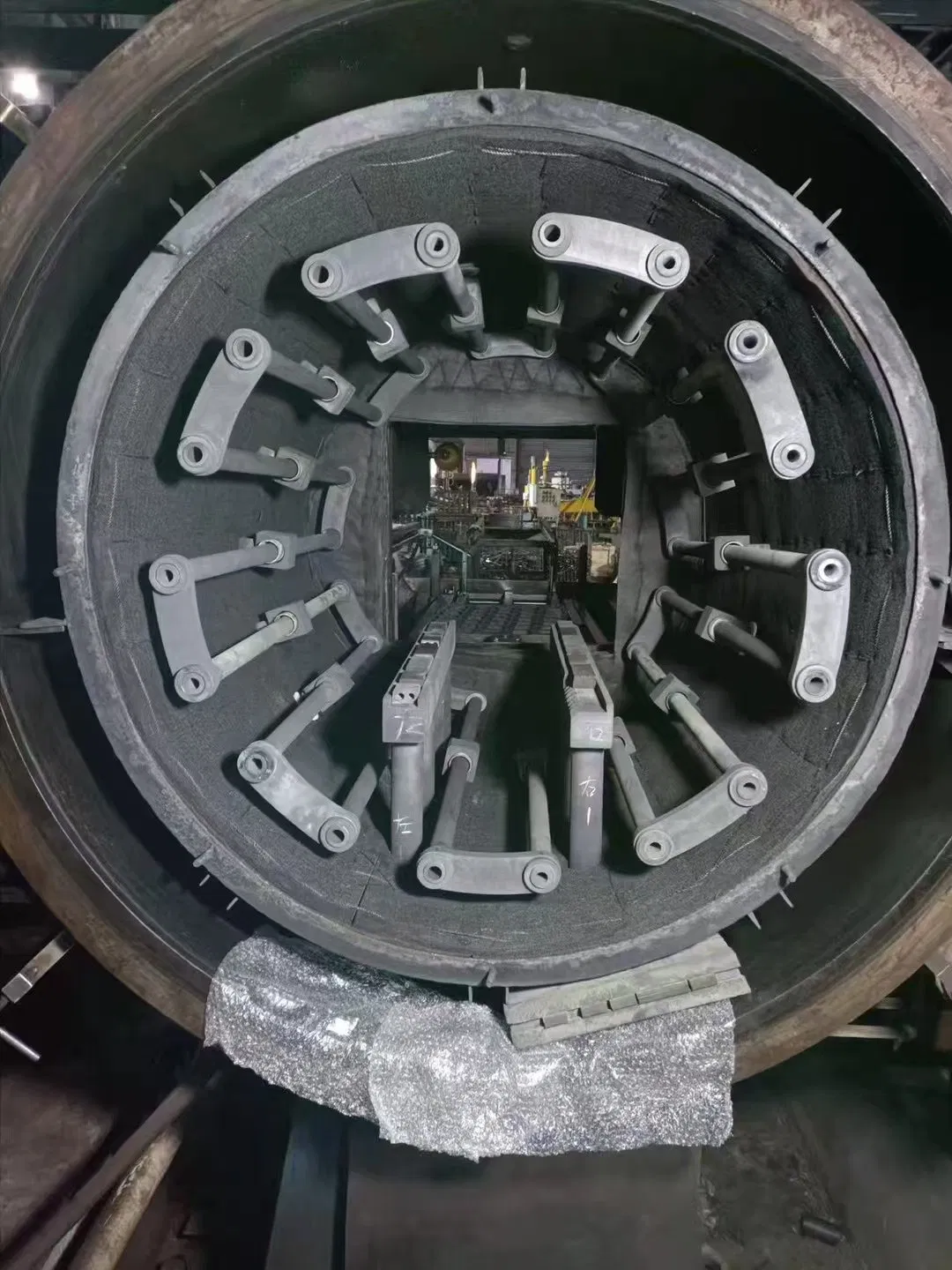

Widely used in Vacuum Furnace, Crystal growth furnace, Semiconductor furnace, and Directional Solidification System (DSS) furnaces.

Carbon fiber carbon composites draft tube (100mm thickness)
High purity from reliable producer
Best insulation efficiency
Manufacture price advantage

Product Scope & Capabilities

We produce graphite rod, graphite block, graphite crucible, graphite mould, graphite bearing, graphite felt, and carbon fiber cloth. Products can be manufactured according to specific drawings and specifications. Available graphite types include:

Molded Graphite (Bulk density 1.6g/cm³ to 1.91g/cm³)
Isostatic Graphite
Extruded Graphite
Vibration Graphite

Frequently Asked Questions

What is the maximum heat treatment temperature for these CC fasteners?

The heat treatment temperature for these high-strength fasteners exceeds 2200 ºC, ensuring stability in extreme high-temperature environments.

In which industries can these carbon-graphite products be applied?

They are widely used in electron and semiconductor industries, non-ferrous metallurgy, EDM (Electrical Discharge Machining), aviation, aerospace, and for sintering molds of diamond tools.

What are the bulk density options for your graphite materials?

Our graphite materials offer a bulk density ranging from 1.6g/cm³ to 1.91g/cm³, depending on the forming method (molded, isostatic, extruded, or vibration).

What is the ash content of your purified products?

Standard products have an ash content of ≤ 200 ppm, while our purified grade achieves a high purity level of ≤ 20 ppm.

Can you manufacture products based on custom drawings?

Yes, we specialize in producing graphite and carbon composite parts customized precisely to your provided technical drawings and specifications.

What types of furnaces are suitable for these CFC products?

These products are ideal for vacuum furnaces, vacuum brazing furnaces, heat treatment furnaces, and crystal growth or directional solidification system (DSS) furnaces.
